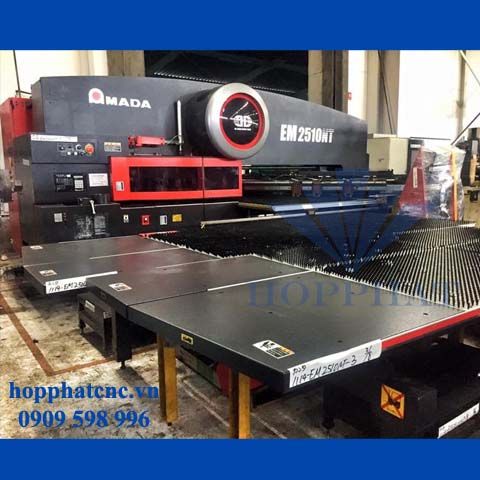

Press model EM2510NT
Press capacity 200 kN (20 metric tons or 22 U.S. tons)
Tool storage 45 or 58 stations
Max. sheet size 1270 × 5000 mm (50 × 196.85”)
Max. sheet thickness 3.2 mm (0.126”)
Max. sheet mass 50 kg (110 lb) at F1
150 kg (330 lb) at F4
Y-axis travel 1270 mm (50”)
X-axis travel 2500 mm (98.425”)
Punching accuracy ±0.1 mm (0.004”)*
±0.07 mm (0.003”)**
Strokes per minute 1 mm pitch (5 mm stroke) : 780 min-1 (hpm)
25.4 mm pitch (5 mm stroke, X-axis): 500 min-1 (hpm)
25.4 mm pitch (5 mm stroke, Y-axis): 330 min-1 (hpm)
Max. press stroke length 37 mm (1.456”)
Max. feed speed (X-axis) 100 m/min (328 ft/min)
Max. feed speed (Y-axis) 80 m/min (262 ft/min)
Turret speed 30 min-1 (rpm)
Power supply 27 kVA
Air supply 250 liters/min (8.8 ft3/min)
Operating air pressure 0.5 MPa (5.0 kgf/cm2 or 72 psi)
Length 6080 mm (239”)
Width 5120 mm (202”)
Height 2318 mm (92”)
3163 mm (125”) mirror installed
Mass 18.0 metric tons (20.0 U.S. tons)
